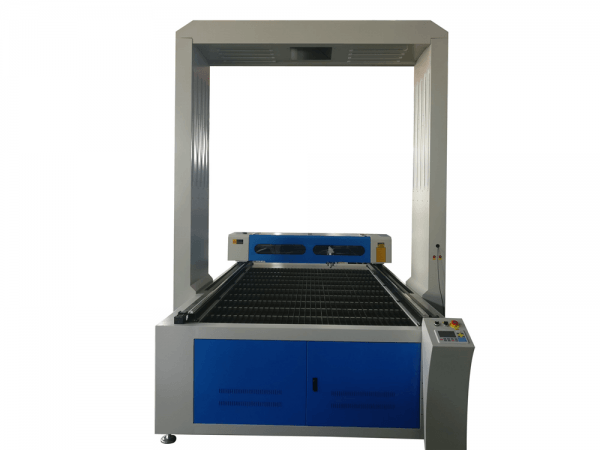

HQ1325MV (CO2 Laser With Vision Camera)

Technical Index:

Laser power: 250W

Laser Type: CO2 Sealed-off laser glass tube, water-cooled

Engraving size: 1300*2500mm

Working Voltage: 220V+/-10% 50Hz or 110V 60 Hz

Cutting speed: 25-60mm/sec.

Engraving speed: 0-1000mm/sec.

Repeating Location: <0.05mm

Laser Energy Control: Adjustable

Max. Scanning Accuracy: 25-2500DPI

Figure Supported: DST, HPGL (PLT), BMP, DXF, AI, DST, JPEG

Software Supported: TAJIMA、CORELDRAW、PHOTOSHOP、AUTOCAD、CAM

Color Separation: Yes, 256 layers

Lift Platform: Optional

Machine Dimension: 3420*2120*1150mm

Packing size: 3.98*2050*1780mm

Gross weight: 750kgs

Total Power: <1500

Operating temperature: 0-45 degree

Operating Moisture: 5-95%

Communication Connection: USB (off-line) or computer control

Moving System: DSP Professional Controlling System

Driving system: Stepper motor

Xem thêm: máy cắt vải laser

Product Feature:

1).  Large format recognition continuous cutting

This function is for patterned fabric precisely positioning and cutting. For example, through digital printing, various graphics printed on garment fabric. In the subsequent of positioning and cutting, material information extracted by the high-speed industrial camera (CCD), software smart identification closed outer contour graphics, then automatically generates the cutting path and finish cutting. Without the need for human intervention, it can achieve continuous recognition cutting of the entire printed fabrics.

I.e. by large format visual recognition system, the software automatically recognize the contour pattern of the garment, and then automatic contour cutting graphics, thus ensuring accurate cutting of the fabric.

Advantage of contour detection:

-No required the original graphics files

-Directly detect roll printed fabrics

-Automatic without manual intervention

-Identification within 5 seconds on the whole cutting area.

2). Printed Marks Cutting

This cutting technology is applicable to a variety of patterns and labels precision cutting. Especially suitable for automatic continuous printing clothing contour cutting. Marker point positioning cutting no pattern size or shape restrictions. Its positioning is only associated with two Marker points. After two Marker points to identify the location, entire format graphics can be precisely cut. (Note: arrangement rules must be the same for each format of the graphic. Automatic feeding continuous cutting, to be equipped with feeding system.)

>>>Tham khảo: Máy cắt laser 1325

Advantage of printed marks detection:

-High precision

-Unlimited for the distance between printed pattern

-Unlimited for printing design and background color

-Compensation of processing material deformation

3). Strips and Plaids Cutting

CCD camera, which is installed in the rear of the cutting bed, can recognize materials information such as stripes or plaids according to color contrast. The nesting system can perform automatic nesting according to the identified graphical information and cut pieces requirement. And can automatically adjust the pieces angle to avoid stripes or plaids distortion on the feeding process. After nesting, the projector would emit red light to mark the cutting lines on materials for calibration.

4). Square Cutting for Banners

If you only need to cut square and rectangle, if you don’t have high requirement about cutting precision, you can choose below system.

Work flow: small camera detect the printing marks and then laser cut the square/rectangle.

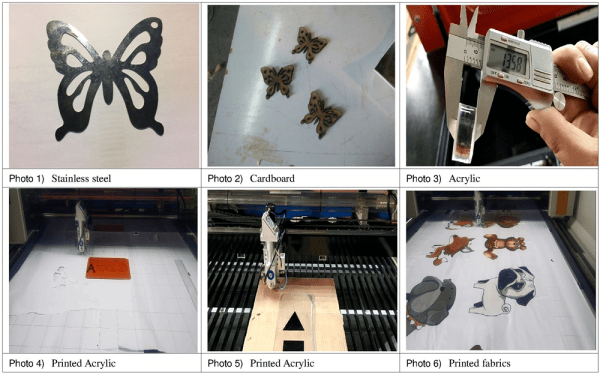

Applicable Industry:

Laser Cutting Printed Sublimation Fabric for Sportswear Swimwear Shoes Banners Flags

Sportswear, sports garment, swimwear, printed sublimation textile & apparel

? Strips & plaids clothing, suits, shirts, dresses

? Fabric with Repetitive Visual Motifs

? Arabesquitic luxury bags, suitcase, sofa upholstery

? Banners, flags, vinyl, polyester

? Other printed materials

? Cutting, engraving, through-carved, hole drilling on textile, garment, leather, cotton & linen fabric, glass, wood, bamboo, acrylic board, MDF Wood board, stainless steel, carbon steel etc.
